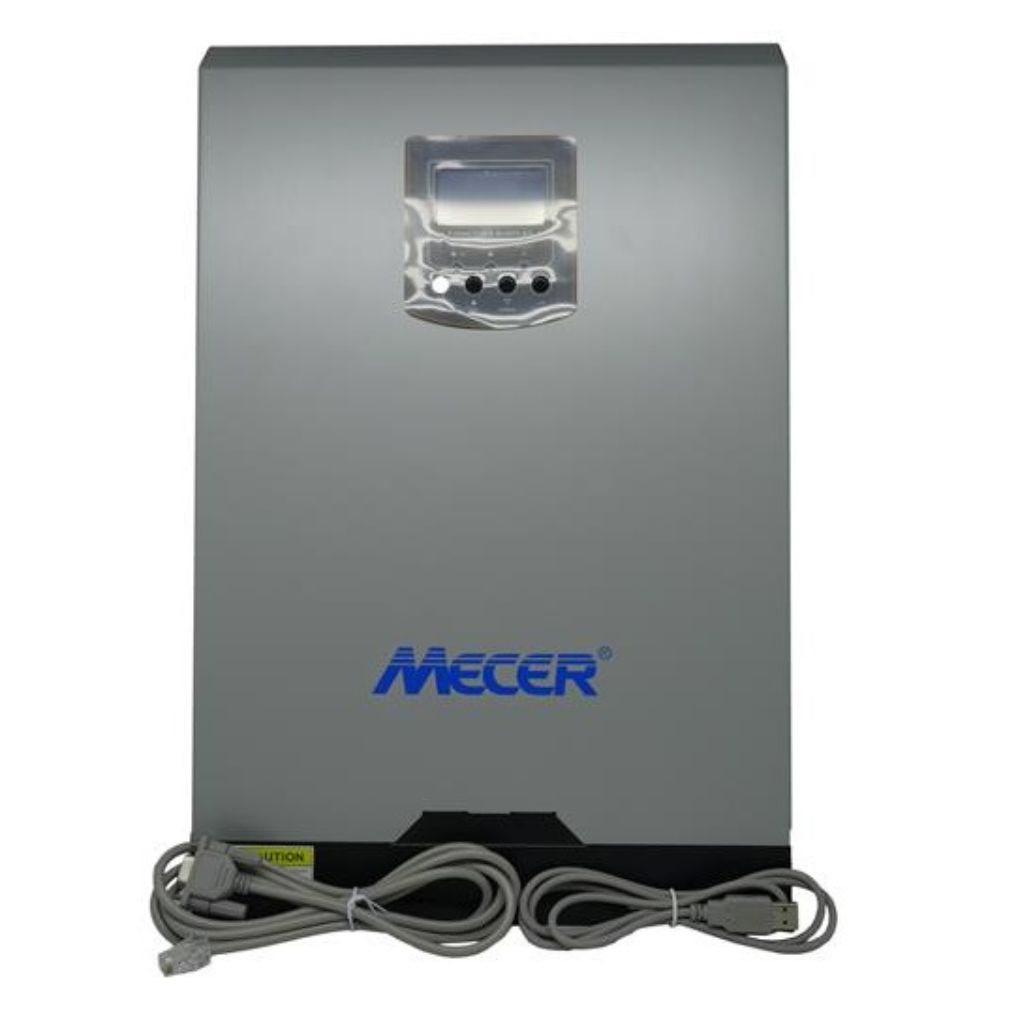

Mecer Axpert V 5kW Pure Sine Wave Inverter SOL-I-AX-5VP Mecer Axpert V 5kW Pure Sine Wave Inverter with 2400W PWM controller – Configurable AC/Solar Input priority via LCD setting, PWM Solar charger Type, 2400W Maximum PV Array power, 105 VDC Maximum PV Array open Circuit voltage, USB & RS-232 communication Port, 48 VDC battery voltage, 10 MS transfer time, Retail Box , 1 year Limited Warranty Product Overview This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. There are two different types of built-in solar chargers: PWM and MPPT solar charger. Features • Pure sine wave inverter • Configurable input voltage range for home appliances and personal computers via LCD setting • Configurable battery charging current based on applications via LCD setting • Configurable AC/Solar Charger priority via LCD setting • Compatible to mains voltage or generator power • Auto restart while AC is recovering • Overload/ Over temperature/ short circuit protection • Smart battery charger design for optimized battery performance • Cold start function • Optional anti-dust kit 1. LCD display 2. Status indicator 3. Charging indicator 4. Fault indicator 5. Function buttons 6. Power on/off switch 7. AC input 8. AC output 9. PV input 10. Battery input 11. Circuit breaker 12. USB communication port 13. RS-232 communication port 1. LCD display 2. Status indicator 3. Charging indicator 4. Fault indicator 5. Function buttons 6. power on/off switch 7. AC input 8. AC output 9. PV input 10. Battery input 11. Fuse 12. USB communication port 13. R5-232 communication port Specifications • Stock Code: SOL-I-AX-5VP • Description: Mecer Axpert V 5kW Pure Sine Wave Inverter with 2400W PWM controller • Input Voltage Waveform: Sinusoidal (utility or generator) • Nominal Input Voltage: 230Vac • Low Loss Voltage: 170Vac±7V (UPS); 90Vac±7V (Appliances) • Low Loss Return Voltage: 180Vac±7V (UPS); 100Vac±7V (Appliances) • High Loss Voltage: 280Vac±7V • High Loss Return Voltage: 270Vac±7V • Max AC Input Voltage: 300Vac • Nominal Input Frequency: 50Hz / 60Hz (Auto detection) • Low Loss Loss Frequency: 40±1Hz • Low Loss Loss Return Frequency: 42±1Hz • High Loss Frequency: 65±1Hz • High Loss Return Frequency: 63±1Hz • Output Short Circuit Protection: Circuit Breaker • Efficiency (Line Mode): >95% (Rated R Load, Battery Full Charged) • Transfer Time: 10ms Typical (UPS); 20ms Typical (Appliances) • Rated Output Power: 5KVA/5KW • Output Voltage Waveform: Pure Sine Wave • Output Voltage Regulation: 230Vac±5% • Output Frequency: 50Hz • Peak Efficiency: 93% • Overload Protection: 5s@≥150% LOAD; 10S@105%~150% Load • Surge Capacity: 2* rated Power for 5 seconds • Nominal DC Input Voltage: 48Vdc • Cold Start Voltage: 46.0Vdc • Low DC Warning Voltage: • @load < 50%: 46.0Vdc • @load> 50%: 44.0Vdc • Low DC Warning Return Voltage: • @load < 50%: 47.0Vdc • @load> 50%: 46.0Vdc • Low DC Cut-off Voltage: • @load < 50%: 43.0Vdc • @load> 50%: 42.0Vdc • High DC recovery Voltage: 62Vdc • High DC Cut-off Voltage: 63Vdc • No Load Power Consumption: <55W Utility Charging Mode • Charging Algorithm: 3-Step • AC Charging Current (max): 60Amp (@Vi/p=230vac) • Bulk Charging Voltage • Flooded Battery: 58.4 • AGM / Gel Battery: 56.4 • Floating Charging Voltage: 54Vdc PWM Solar Charging Mode • Charging Current: 50Amp • System DC Voltage: 48Vdc • Operation Voltage range: 60~72Vdc • Max. PV Array Open Circuit Voltage: 100Vdc • DC Voltage Accuracy: ±0.3% • Max Charging Current (AC Charger plus Solar Charger): 110Amp MPPT Solar Charging Mode • Charging Current: 60Amp • PV Array MPPT Voltage Range: 60~115Vdc • Max. PV Array Open Circuit Voltage: 145Vdc • Max Charging Current (AC Charger Plus Solar Charger): 120Amp • Safety Certification: CE • Operating Temperature Range: -10°C to 50°C • Storage temperature: -15°C~60°C • Humidity: 5% to 95% Relative Humidity (Non-condensing) • Dimension (D*W*H), mm: 100x300x400 • Net Weight, kg (PWM Model): 8.5 • Net, kg (MPPT Model): 9.7 Contact us if you would like to enquire about this product ← BackThank you for your response. ✨ Name & Surname(required) Email(required) Message Submit Δ
