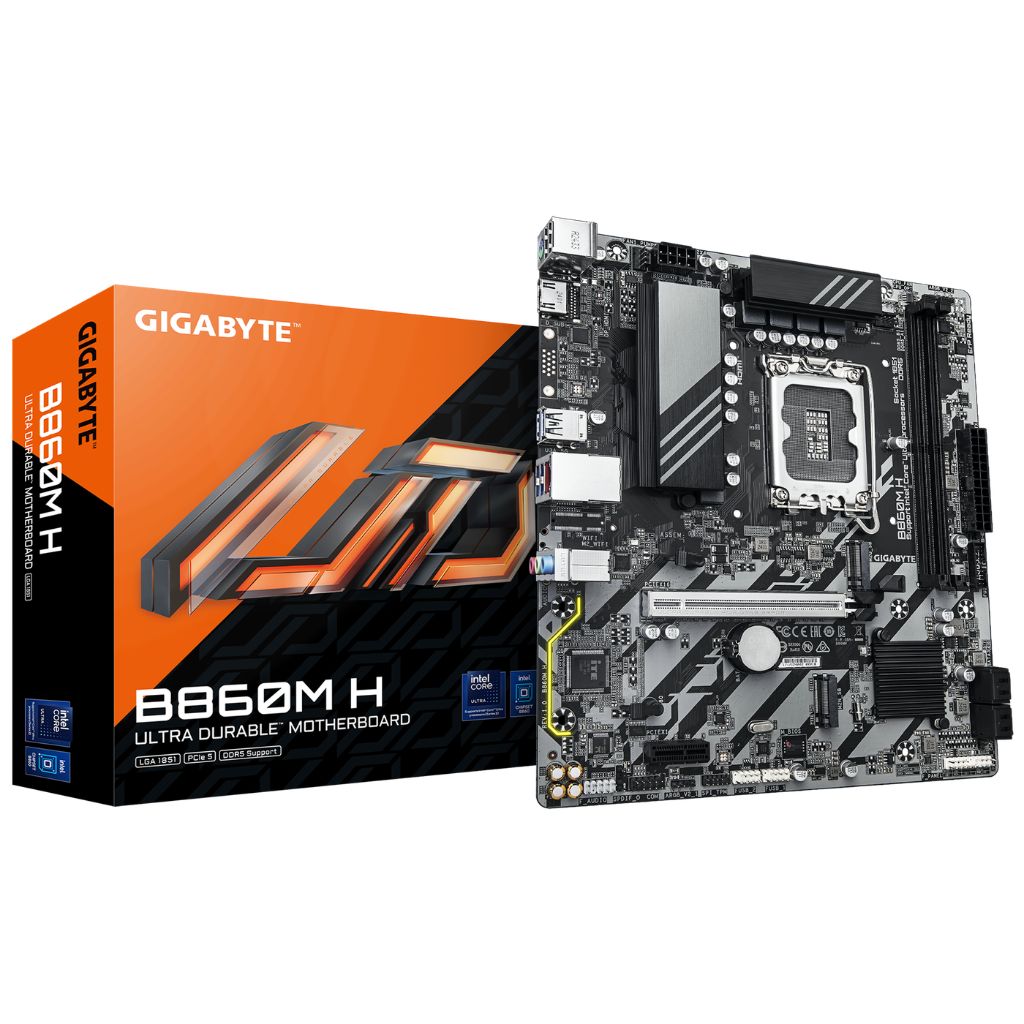

Gigabyte B860M H DDR5 Micro-ATX LGA1851 Intel Motherboard – GA-B860M-H

Gigabyte B860M H DDR5 Micro-ATX LGA1851 Intel Motherboard – GA-B860M-H Full description Gigabyte. LGA1851 Socket with Intel B860 Chipset – Built for Intel Core Ultra processors. DDR5 Memory up to 8800MT/s (OC) – Dual-channel DDR5 support up to 128GB. PCIe 5.0 x16 Graphics Slot – Next-gen GPU support with full PCIe 5.0 bandwidth. Dual M.2 PCIe 4.0 Storage – 2x M.2 slots plus 4x SATA 6Gb/s with RAID support. 2.5GbE LAN Connectivity – High-speed Realtek 2.5G networking for modern builds.   Specifications Brand: Gigabyte Model: GA-B860M-H Chipset: Intel® B860 Express Socket: LGA1851 Form Factor: Micro-ATX (24.4cm x 21.5cm) CPU Support Supported Processors: Intel® Core™ Ultra Processors Memory Memory Type: DDR5 DIMM Slots: 2 Maximum Capacity: 128GB Memory Speed: Up to 8800MT/s (OC) Memory Support: Dual Channel, XMP Expansion Slots PCIe x16 Slot: 1x PCIe 5.0 x16 PCIe x1 Slot: 1x PCIe 4.0 x1 Storage M.2 Slots: 2x M.2 (PCIe 4.0 x4) SATA Ports: 4x SATA 6Gb/s RAID Support: RAID 0/1/5/10 (SATA) Graphics Outputs HDMI: 1x HDMI Networking LAN: Realtek 2.5GbE LAN Audio Audio Codec: Realtek High Definition Audio Audio Channels: 2/4/5.1/7.1 Channel S/PDIF Out: Yes (Internal Header) Back Panel I/O Ports USB 3.2 Gen 1: 4x USB 3.2 Gen 1 USB 2.0: 2x USB 2.0 PS/2 Port: 1x PS/2 Combo HDMI: 1 LAN Port: 1x RJ-45 (2.5GbE) Audio Jacks: 3x Audio Jacks Internal I/O Connectors 24-pin ATX Power: 1 8-pin CPU Power: 1 CPU Fan Header: 1 CPU Pump Header: 1 System Fan Header: 1 M.2 Slots: 2 SATA Connectors: 4 USB 3.2 Gen 1 Header: 1 USB 2.0 Headers: 2 RGB Header: Yes Addressable RGB: 2x Addressable RGB Gen2 Headers Front Panel Header: Yes TPM Header: Yes Clear CMOS: Yes BIOS BIOS Type: 256 Mbit Flash, UEFI AMI BIOS Operating System Support OS Support: Windows 11 / Windows 10 64-bit Warranty Information Warranty: 3 Year Warranty   Gigabyte B860M H DDR5 Micro-ATX LGA1851 Intel Motherboard – GA-B860M-H Contact us if you would like to enquire about this product. ← BackThank you for your response. ✨ Name & Surname(required) Email(required) Message Submit Δ
