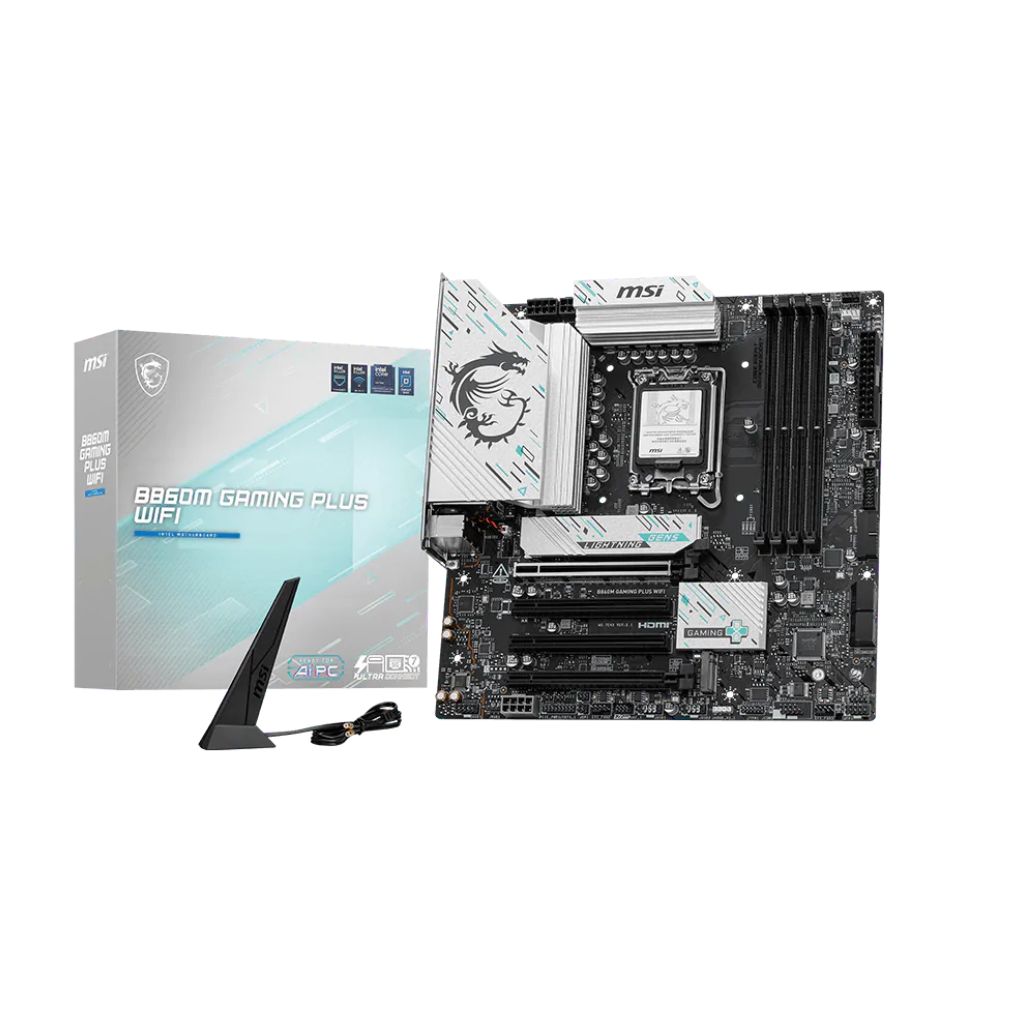

MSI B860M Gaming PLUS WiFi DDR5 Micro-ATX LGA1851 Intel Motherboard

MSI B860M Gaming PLUS WiFi DDR5 Micro-ATX LGA1851 Intel Motherboard Full description MSI. Built for Intel® Core™ Ultra (Series 2) Processors – Powered by the Intel B860 chipset with LGA1851 socket support for next-generation performance, AI-enhanced workloads, and modern gaming builds. DDR5 Performance up to 8800MT/s (OC) – 4x DDR5 DIMM slots supporting up to 256GB of high-speed memory with XMP 3.0 for extreme multitasking, content creation, and competitive gaming. PCIe 5.0 Graphics & Triple M.2 Storage – PCIe 5.0 x16 slot for next-gen GPUs plus 3x M.2 slots (including PCIe 5.0) for ultra-fast NVMe SSD performance. Integrated WiFi 7 & 5Gbps LAN – Intel Killer™ networking with WiFi 7 and 5G LAN delivers ultra-low latency, high-bandwidth connectivity for gaming and streaming. Thunderbolt™ 4 USB 20Gbps Connectivity – Advanced high-speed connectivity including rear Thunderbolt™ 4, multiple USB 10Gbps ports, and modern I/O for creators and power users.   Specifications Brand: MSI Model: B860M Gaming PLUS WiFi Chipset: Intel® B860 Socket: LGA1851 Form Factor: Micro-ATX (243.84mm x 243.84mm) CPU Support Supported Processors: Intel® Core™ Ultra Processors (Series 2) Memory Memory Type: DDR5 DIMM Slots: 4x DDR5 UDIMM Maximum Capacity: Up to 256GB Memory Speed: 8800 – 6400 (OC) / 6400 – 4800 (JEDEC) MT/s Memory Support: Dual Channel, Intel® XMP 3.0, Non-ECC, Un-buffered Expansion Slots PCIe x16 Slot: 1x PCIe 5.0 x16 (from CPU) PCIe x1 Slots: 2x PCIe 4.0 x1 (from Chipset) Storage M.2 Slots: 3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) SATA Ports: 4x SATA 6Gb/s RAID Support: RAID 0 / 1 / 5 / 10 (SATA) Networking LAN: Intel® Killer™ E5000 5Gbps LAN Wireless: Intel® WiFi 7 (802.11be) Bluetooth: Bluetooth® 5.4 Graphics Outputs HDMI: 1x HDMI™ DisplayPort: 1x DisplayPort Thunderbolt: 1x Thunderbolt™ 4 (40Gbps, USB Type-C) Audio Audio Codec: Realtek® ALC897 Audio Channels: 7.1-Channel High Definition Audio USB (Rear) USB 2.0: 2x USB 2.0 USB 5Gbps Type-A: 2x USB 5Gbps USB 10Gbps Type-A: 1x USB 10Gbps USB 10Gbps Type-C: 1x USB 10Gbps Type-C Internal I/O Connectors Power Connectors: 1x 24-pin ATX, 1x 8-pin CPU Fan Headers: CPU Fan, Pump Fan, System Fan headers USB Headers: USB 2.0 & USB 5Gbps headers RGB Headers: ARGB Gen2 & RGB LED headers Front Panel: Yes TPM Header: Yes (TPM 2.0 Support) Back Panel I/O Ports LAN Port: 1x 5Gbps RJ-45 WiFi Antenna Ports: 2 Audio Jacks: HD Audio Connectors Clear CMOS: Yes BIOS BIOS Type: 256Mb Flash, UEFI BIOS Operating System Support OS Support: Windows® 11 64-bit Warranty Information Warranty: 3 Year Warranty   MSI B860M Gaming PLUS WiFi DDR5 Micro-ATX LGA1851 Intel Motherboard Contact us if you would like to enquire about this product. ← BackThank you for your response. ✨ Name & Surname(required) Email(required) Message Submit Δ
